Getting the Steam Up: Part 2 Predreadnoughts

Rescaled plan of the HMS London...the original scan from Janes Fighting Ships 1905-6 is on the upper left, the rescaled version is on the right.
 Much-inspired by some great links sent to me after my recent post on some homemade pre-dreadnoughts I have moved into a "Homemade pre-dreadnoughts Mark II" phase. In particular, I am enjoying the look of the really cool pre-dreadnoughts on the "Old Admirals" blog, and Bob Cordery's stylized wooden predreadnoughts. I decided my small scale pre-dreads were a bit too small and I was taken with the idea that the ships could be larger and carry a bit more detail while remaining entirely scratchbuilt from inexpensive materials and, most importantly, quickly built.
SMS Brandenburg
 My approach was to take original scans from a copy of Janes Fighting Ships 1905-6 that I recently got on ebay (for a really great price) and manipulate the scanned image to give me a new template on which to base the hull shape. I wanted a more abstract look to the models, and just a bit stylized so I settled on a 1.5 inch width by about a 5 inch length to make my battleships. This size would work with 4" or 5" hexes and give me the look and the size that would allow some more complex detailing on the models. Most importantly I could use round toothpicks and readily available wood shapes for turrets and gun barrels and everything would still look believable to the eye. So the scanned image was resized in Adobe "InDesign" to get the shape that I was looking for...so shorter length and wider beam was the watchword.
HMS London
 The result is pretty satisfying, even if they are not true scale models, they are fairly faithful to the general look of the historical ship (which is what my earlier efforts had missing). They have a nice heft and plenty of room for deck details.

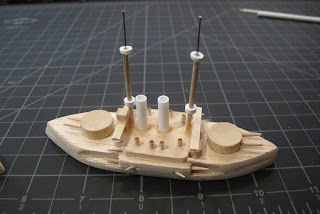

HMS London in it's raw state...still working on the masts.
 I used balsa for the main hull and wood toothpicks for the gun barrels. Some plastic tube and metal pins make up the rest...all really cheap available materials.
SMS Brandenburg..the models are very raw at this point...sanding and priming will hopefully take care of the imperfections.

First coat of acrylic gesso to seal and give a good primer coat to cover imperfections in the balsa hull

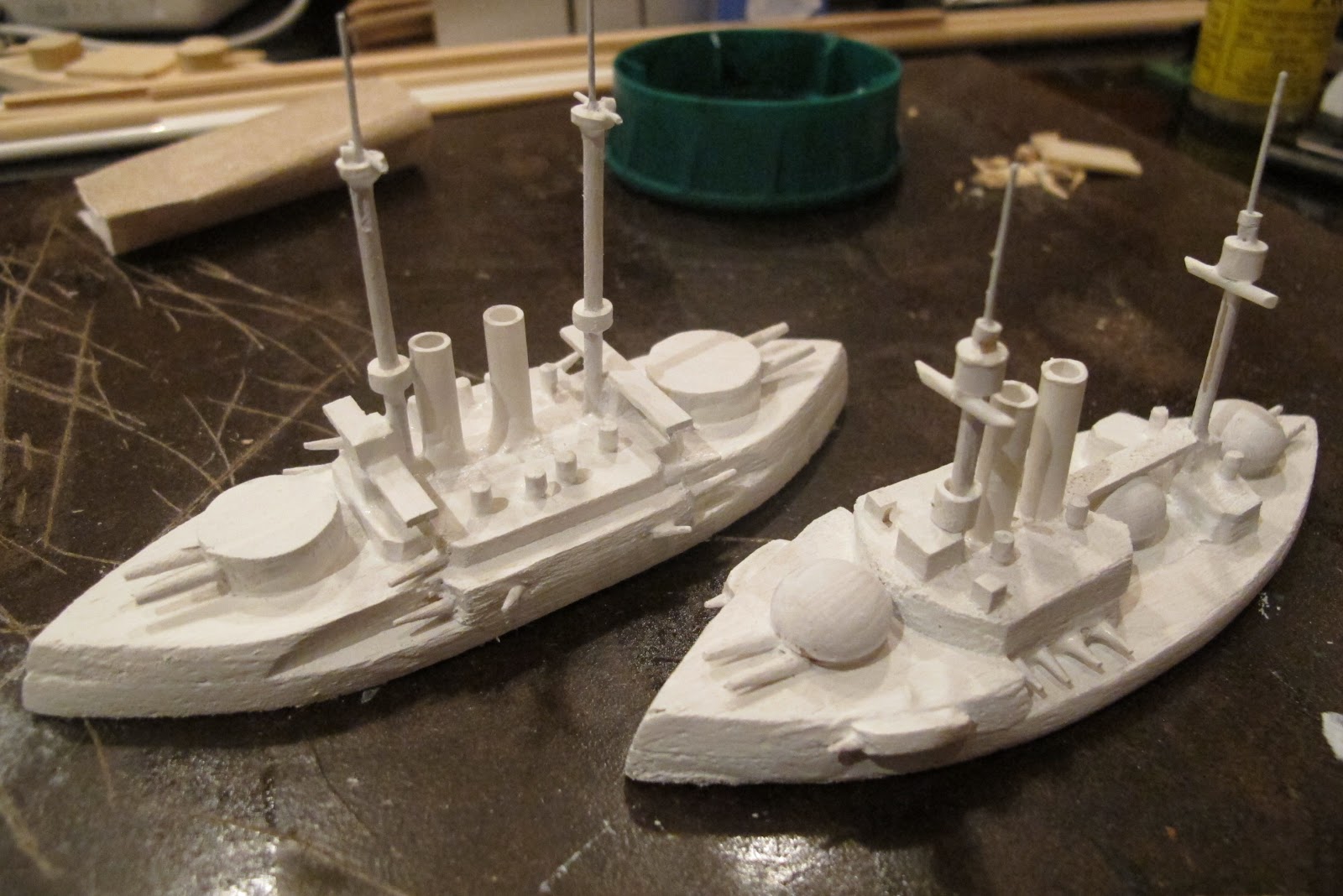

the London and the Brandenburg...a first pass at a new fleet of pre-dreadnoughts


Finally a few pics from the internet to make the visual comparisons easier...
SMS Brandenburg during the late 1800s...she was refitted in WWI so some of the barbettes were no longer visible in later pics. She was part of the German fleet during the Boxer Rebellion

The "business end" of the Brandenburg

I'm finding the wealth of info on the web to be a scratchbuilders dream...that spherical turret on the Brandenburg is way-cool and not just a little "steampunk" as well!
